Socket Head Cap Screw

  • Home
  • Socket Head Cap Screw
...

Socket Head Cap Screws are high-strength precision fasteners featuring a cylindrical head with an internal hexagonal drive, designed to be tightened using an Allen wrench or hex key. Known for their superior tensile strength and fatigue resistance, they are ideal for applications where space is limited or where a flush, counterbored installation is required. Manufactured to strict standards like DIN 912, ISO 4762, and ASME B18.3, these screws are widely utilized in machine assembly, die fixturing, and automotive engineering. Available in premium grades such as Stainless Steel, Alloy Steel (12.9), and Inconel, they offer exceptional durability and reliability in critical high-stress environments.

Detailed Specifications

Size
M4 to M180 Metric 1/4” to 8″ Imperial
Length
Up to 6000mm
Type of Threads
Metric Coarse Metric Fine UNC UNF BSW BSF 8UN
Threads Configuration
ASME B1.1 2A/3A ISO 261 (6g) ISO 965-1
Type of Manufacturing
Hot Forging Machined Bars Milling Bars Cold Forging
Raw Material Origin
Indian Origin European Origin Japanese Origin US Origin
Finish Part Origin
Made in India Custom Origin per Request
Surface Coating
Plain / Oil Black Zinc Plated Hot Dip Galvanized (HDG) Cadmium Nickel Chrome PTFE / Teflon Xylan
Heat Treatment Details
Quenching & Tempering Solution Annealing Precipitation Hardening Stress Relieving
Marking
Manufacturer Logo Grade ID Size Heat Number (Traceability)
Delivery Terms
Ex-Works (EXW) FOB CIF CFR DDP
Packing Type
Carton Boxes Wooden Pallets Wooden Crates Custom Bundles
Payment Methods
L/C (Letter of Credit) T/T (Wire Transfer) Western Union
Certifications
ISO 9001:2015 PED 2014/68/EU MTC EN 10204 3.1
Additional Certifications
NABL Approved Lab Reports Third Party Inspection (TPI) Rohs Compliance
Mandatory & Additional Requirements
NACE MR0175 / ISO 15156 Positive Material Identification (PMI) Ultrasonic Test (UT) Intergranular Corrosion Test (IGC)

Available Inconel Grades & Standards

Dimensions Chart (DIN 912 / ISO 4762)

Nominal Size (d) Pitch (P) Head Diameter (dk) Head Height (k) Key Size (s)

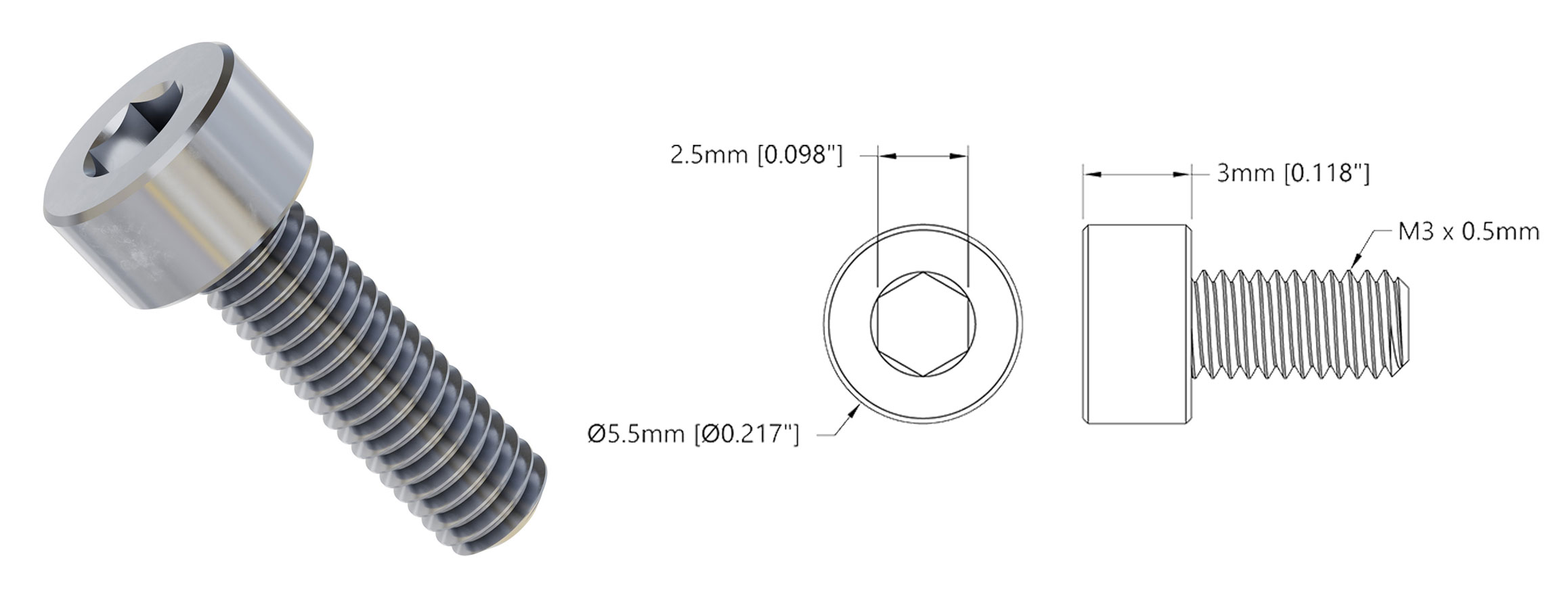

M3 0.5 5.5 3.0 2.5
M4 0.7 7.0 4.0 3.0
M5 0.8 8.5 5.0 4.0
M6 1.0 10.0 6.0 5.0
M8 1.25 13.0 8.0 6.0
M10 1.5 16.0 10.0 8.0
M12 1.75 18.0 12.0 10.0
M16 2.0 24.0 16.0 14.0
M20 2.5 30.0 20.0 17.0
M24 3.0 36.0 24.0 19.0
M30 3.5 45.0 30.0 22.0

Chemical Composition (Inconel Grades)

Grade Ni (Nickel) Cr (Chromium) Fe (Iron) Mo (Molybdenum) Nb (Niobium) Co (Cobalt) Other Elements
Inconel 625 58.0% Min 20.0 - 23.0% 5.0% Max 8.0 - 10.0% 3.15 - 4.15% 1.0% Max Ti 0.4%, Al 0.4%
Inconel 718 50.0 - 55.0% 17.0 - 21.0% Balance 2.8 - 3.3% 4.75 - 5.5% 1.0% Max Ti 0.65 - 1.15%
Inconel X-750 70.0% Min 14.0 - 17.0% 5.0 - 9.0% - 0.7 - 1.2% 1.0% Max Ti 2.25 - 2.75%, Al 0.4 - 1.0%
Inconel 600 72.0% Min 14.0 - 17.0% 6.0 - 10.0% - - - Mn 1.0%, C 0.15%
Inconel 601 58.0 - 63.0% 21.0 - 25.0% Balance - - - Al 1.0 - 1.7%
Inconel 800 30.0 - 35.0% 19.0 - 23.0% 39.5% Min - - - Al 0.15 - 0.60%, Ti 0.15 - 0.60%
Inconel 825 38.0 - 46.0% 19.5 - 23.5% 22.0% Min 2.5 - 3.5% - - Cu 1.5 - 3.0%, Ti 0.6 - 1.2%

Mechanical Properties (Inconel Socket Head Cap Screws)

Grade Tensile Strength
(MPa / N/mm²) Min		 Yield Strength
(MPa / N/mm²) Min		 Elongation
(%) Min		 Hardness
(HRC / HB)
Inconel 625 827 414 30% 145 - 220 HB
Inconel 718 1275 1035 12% 36 - 44 HRC
Inconel X-750 1100 700 15% 30 - 40 HRC
Inconel 600 550 240 30% 65 - 85 HRB
Inconel 601 550 205 30% 60 - 80 HRB
Inconel 800 520 205 30% 75 HRB (Max)
Inconel 825 586 241 30% 135 - 165 HB
