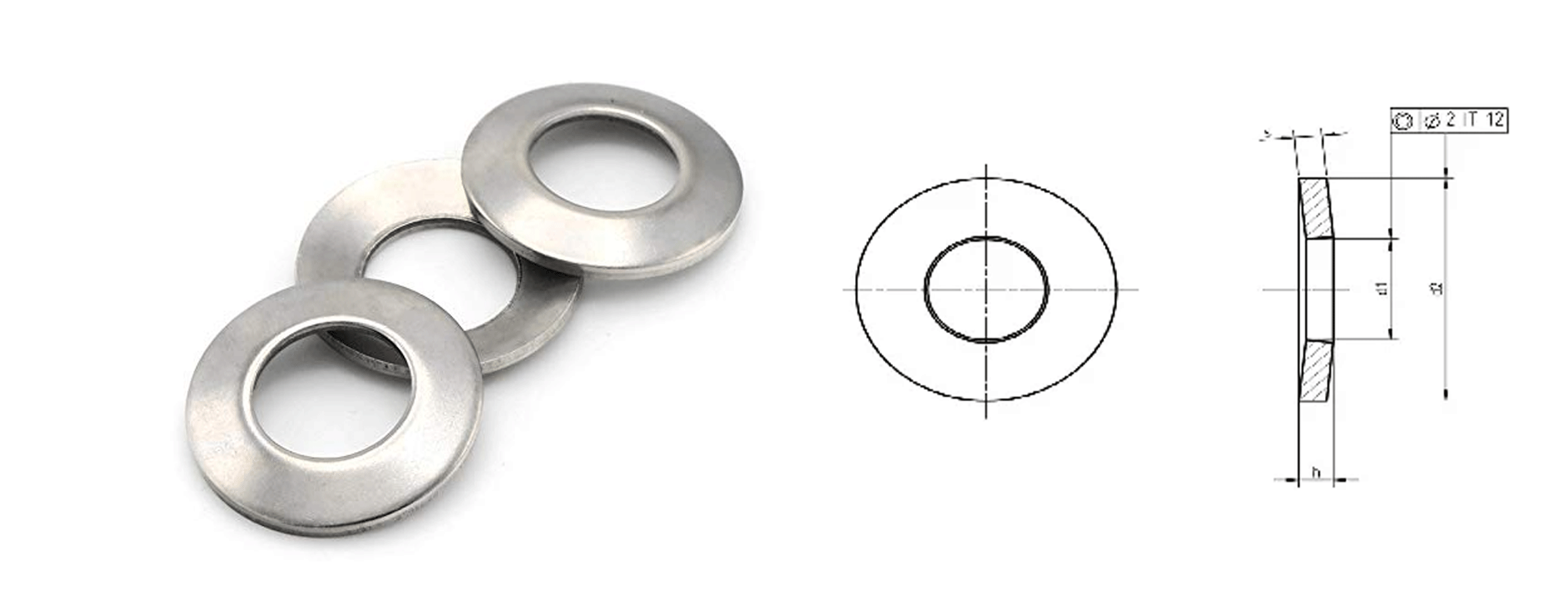

Belleville Washers, technically known as Conical Spring Washers or Disc Springs, are precision-engineered components designed to maintain high tension (preload) in bolted assemblies subject to extreme thermal cycling, bolt creep, or vibration. Unlike flat washers, Bellevilles act as powerful springs; they deflect under load and rebound to compensate for any relaxation in the joint, effectively "live-loading" the flange to prevent leakage. While standard steel springs relax and fail above 250°C, our Inconel Belleville Washers are manufactured from precipitation-hardened superalloys like Inconel X-750 and Inconel 718. These grades retain their spring properties up to 700°C, making them the industry standard for securing valves, heat exchangers, and bus bars in power generation and petrochemical plants. We manufacture these to DIN 2093 and DIN 6796 standards.
Detailed Specifications
Size Range
Washer Series (Load Profile)
Stacking Arrangements
Dimensional Standards
Type of Manufacturing
Raw Material Origin
Finish Part Origin
Surface Coating (Critical)
Marking
Heat Treatment Details
Delivery Terms
Packing Type
Payment Methods
Certifications
Additional Certifications
Mandatory Requirements
Available Inconel Grades & Standards
Dimensions Chart (DIN 2093 Disc Springs)
| Nominal Size (Bolt Dia) |
Inner Diameter (di) (H13) |
Outer Diameter (De) (h11) |
Thickness (t) (Material) |
Total Height (lo) (Free Height) |
|---|---|---|---|---|
| M6 | 6.2 mm | 12.5 mm | 0.7 mm | 1.0 mm |
| M8 | 8.2 mm | 16.0 mm | 0.9 mm | 1.25 mm |
| M10 | 10.2 mm | 20.0 mm | 1.1 mm | 1.55 mm |
| M12 | 12.2 mm | 25.0 mm | 1.5 mm | 2.05 mm |
| M16 | 16.3 mm | 31.5 mm | 1.75 mm | 2.45 mm |
| M20 | 20.4 mm | 40.0 mm | 2.25 mm | 3.15 mm |
| M24 | 25.4 mm | 50.0 mm | 2.5 mm | 3.5 mm |
| M30 | 31.0 mm | 63.0 mm | 3.5 mm | 4.9 mm |
| M36 | 37.0 mm | 80.0 mm | 5.0 mm | 6.7 mm |
| M42 | 43.0 mm | 90.0 mm | 5.0 mm | 7.0 mm |
Chemical Composition (Spring Alloy Grades)
| Grade | Ni (Nickel) | Cr (Chromium) | Ti (Titanium) | Al (Aluminum) | Nb (Niobium) | Application |
|---|---|---|---|---|---|---|
| Inconel X-750 | 70.0% Min | 14.0 - 17.0% | 2.25 - 2.75% | 0.4 - 1.0% | 0.7 - 1.2% | Max Temp 700°C |
| Inconel 718 | 50.0 - 55.0% | 17.0 - 21.0% | 0.65 - 1.15% | 0.2 - 0.8% | 4.75 - 5.5% | Max Temp 650°C |
| Inconel 625 | 58.0% Min | 20.0 - 23.0% | 0.4% Max | 0.4% Max | 3.15 - 4.15% | Corrosion (Low Load) |
Mechanical Properties (Heat Treated Condition)
| Grade | Hardness (HRC) (Rockwell C) |
Tensile Strength (MPa) Min |
Elastic Modulus (GPa at 20°C) |
Relaxation Resistance |
|---|---|---|---|---|
| Inconel X-750 | 40 - 50 HRC | 1150 - 1400 | 214 GPa | Excellent |
| Inconel 718 | 40 - 48 HRC | 1300 - 1500 | 200 GPa | Very Good |
| Inconel 625 | 30 - 40 HRC | 827 - 1000 | 205 GPa | Fair (Creeps) |
