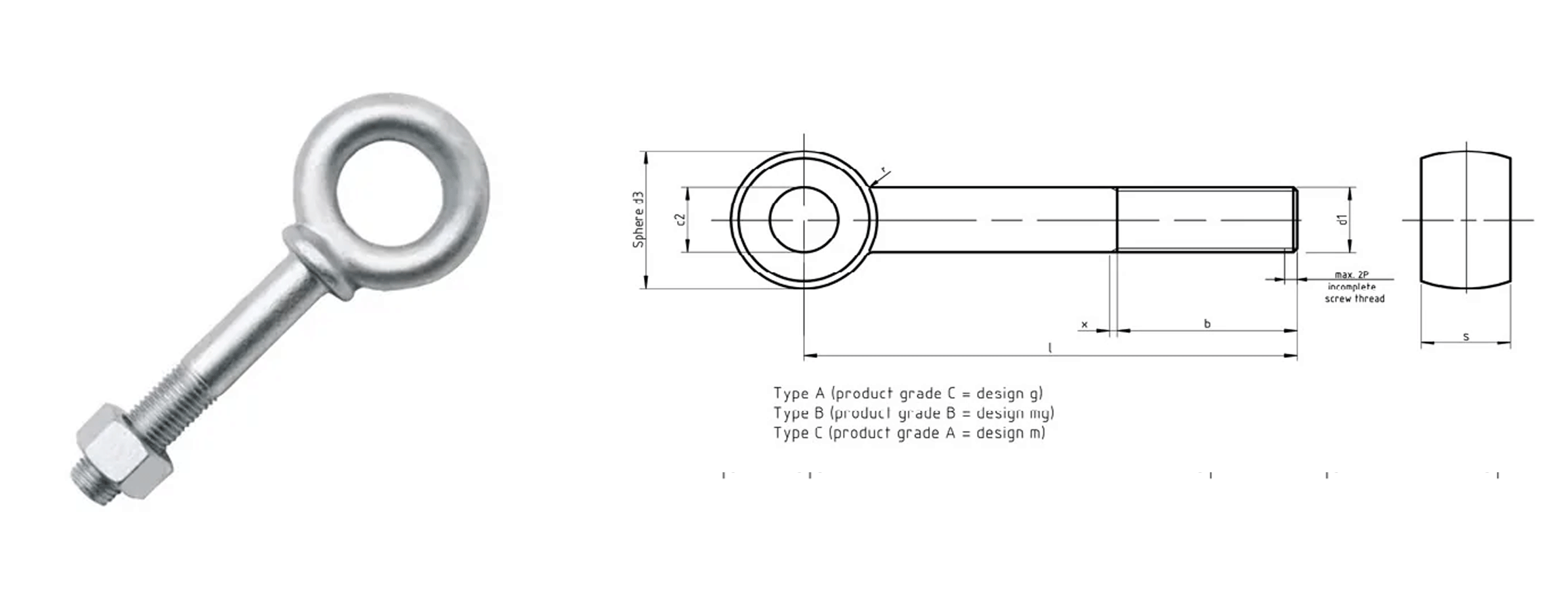

Eye Bolt

...

Eye Bolts are critical rigging fasteners featuring a looped head designed to secure cables, wires, and shackles for lifting and suspension applications. Unlike standard steel lifting points that are susceptible to failure from rust and fatigue, our high-performance Eye Bolts are engineered to maintain structural integrity in the most aggressive environments. Manufactured to safety-critical standards such as DIN 580 and ASME B18.15, they provide a reliable anchor point for heavy loads. At Inconel Fasteners, we forge these essential components from superior alloys like Inconel 625, 718, and Monel 400, ensuring unmatched resistance to saltwater corrosion, oxidation, and stress cracking in marine and chemical processing sectors.

Detailed Specifications

Size
M6 to M100 Metric 1/4” to 4″ Imperial
Shank Length
Standard Pattern Long Shank (Shoulder Pattern) Custom Lengths Available
Type of Threads
Metric Coarse Metric Fine UNC UNF BSW
Standards & Configuration
DIN 580 (Lifting Eye) DIN 444 (Swing Bolt) ASME B18.15 (Lifting) JIS B 1168
Type of Manufacturing
Drop Forged (Mandatory for Lifting) Machined (Non-Lifting only)
Raw Material Origin
Indian Origin European Origin Japanese Origin US Origin Korean Origin
Finish Part Origin
Made in India Custom Origin per Request
Surface Coating
Self Color / Plain Hot Dip Galvanized (HDG) Zinc Plated (White/Yellow) Electro-Polished PTFE / Xylan
Marking
Manufacturer Logo Material Grade WLL (Working Load Limit) Heat Number
Heat Treatment Details
Normalized Quenched & Tempered Solution Annealed
Delivery Terms
Ex-Works (EXW) FOB CIF CFR DDP
Packing Type
Gunny Bags Carton Boxes Wooden Pallets Export Worthy Packing
Payment Methods
L/C (Letter of Credit) T/T (Wire Transfer) Western Union
Certifications
ISO 9001:2015 Proof Load Test Certificate MTC EN 10204 3.1
Additional Certifications
NABL Approved Lab Reports Third Party Inspection (TPI) Breaking Load Test
Mandatory & Additional Requirements
Positive Material Identification (PMI) Ultrasonic Test (UT) Magnetic Particle Inspection (MPI) Liquid Penetrant Test (LPT)

Available Inconel Grades & Standards

Dimensions Chart (DIN 580 Lifting Eye Bolt)

Nominal Size (d) Pitch (P) Outer Eye Dia (d2) Inner Eye Dia (d3) Thread Length (l) WLL (Vertical)
(kg)
M6 1.0 36 mm 20 mm 13.0 mm 70 kg
M8 1.25 36 mm 20 mm 13.0 mm 140 kg
M10 1.5 45 mm 25 mm 17.0 mm 230 kg
M12 1.75 54 mm 30 mm 20.5 mm 340 kg
M16 2.0 63 mm 35 mm 27.0 mm 700 kg
M20 2.5 72 mm 40 mm 30.0 mm 1200 kg
M24 3.0 90 mm 50 mm 36.0 mm 1800 kg
M30 3.5 108 mm 60 mm 45.0 mm 3200 kg
M36 4.0 126 mm 70 mm 54.0 mm 4600 kg

Chemical Composition (Inconel Grades)

Grade Ni (Nickel) Cr (Chromium) Fe (Iron) Mo (Molybdenum) Nb (Niobium) Co (Cobalt) Other Elements
Inconel 625 58.0% Min 20.0 - 23.0% 5.0% Max 8.0 - 10.0% 3.15 - 4.15% 1.0% Max Ti 0.4%, Al 0.4%
Inconel 718 50.0 - 55.0% 17.0 - 21.0% Balance 2.8 - 3.3% 4.75 - 5.5% 1.0% Max Ti 0.65 - 1.15%
Inconel 600 72.0% Min 14.0 - 17.0% 6.0 - 10.0% - - - Mn 1.0%, C 0.15%
Inconel 601 58.0 - 63.0% 21.0 - 25.0% Balance - - - Al 1.0 - 1.7%
Inconel X-750 70.0% Min 14.0 - 17.0% 5.0 - 9.0% - 0.7 - 1.2% 1.0% Max Ti 2.25 - 2.75%, Al 0.4 - 1.0%
Inconel 800 30.0 - 35.0% 19.0 - 23.0% 39.5% Min - - - Al 0.15 - 0.60%, Ti 0.15 - 0.60%
Inconel 825 38.0 - 46.0% 19.5 - 23.5% 22.0% Min 2.5 - 3.5% - - Cu 1.5 - 3.0%, Ti 0.6 - 1.2%

Mechanical Properties (Inconel Lifting Eyes)

Grade Tensile Strength
(MPa / N/mm²) Min		 Yield Strength
(MPa / N/mm²) Min		 Elongation
(%) Min		 Hardness
(HRC / HB)
Inconel 718 1275 1035 12% 36 - 44 HRC
Inconel 625 827 414 30% 145 - 220 HB
Inconel X-750 1100 700 15% 30 - 40 HRC
Inconel 600 550 240 30% 65 - 85 HRB
Inconel 601 550 205 30% 60 - 80 HRB
Inconel 800 520 205 30% 75 HRB (Max)
Inconel 825 586 241 30% 135 - 165 HB
