Hex Head Screws are the widely used industrial fasteners, characterized by their six-sided head designed for high-torque applications using a wrench or socket. Engineered to meet rigorous international standards such as DIN 933, ISO 4017, and ASME B18.2.1, these screws provide exceptional structural stability in heavy machinery, construction, and automotive assemblies. Available in a comprehensive range of grades including Stainless Steel, Carbon Steel, and High-Nickel Alloys, our Hex Head Screws ensure superior corrosion resistance and long-lasting performance in both high-temperature and high-pressure environments.
Detailed Specifications
Size
Length
Type of Threads
Threads Configuration
Type of Manufacturing
Raw Material Origin
Surface Coating
Heat Treatment Details
Certifications
Additional Certifications
Additional Requirements
Mandatory Requirements
Available Inconel Grades & Standards
-
Inconel Alloy 600 Standard: ASTM B166
-
Inconel Alloy 601 Standard: ASTM B168
-
Inconel Alloy 625 Standard: DIN 17752
-
Inconel Alloy 718 Standard: ASTM F2281
-
Inconel Alloy X750 Standard: ASME SB637
-
Inconel Alloy 617 Standard: ASME SB166
-
Inconel Alloy 690 Standard: ASTM B564-15
-
Inconel Alloy 800 Standard: ASTM B408
-
Inconel Alloy 825 Standard: ASTM B425

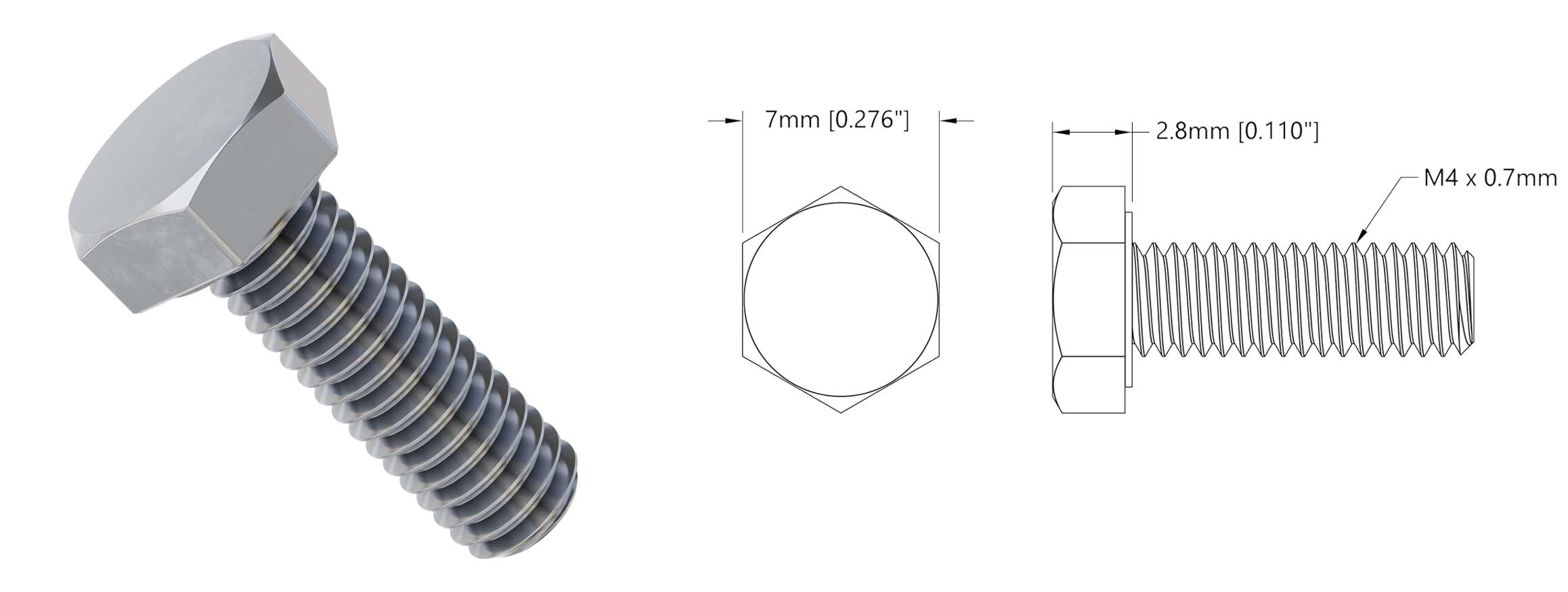

Dimensions Chart (DIN 933 / ISO 4017)
| Nominal Size (d) | Pitch (P) | Head Height (k) | Width Across Flats (s) | Width Across Corners (e) |
|---|---|---|---|---|
| M4 | 0.7 | 2.8 | 7 | 7.66 |
| M5 | 0.8 | 3.5 | 8 | 8.79 |
| M6 | 1.0 | 4.0 | 10 | 11.05 |
| M8 | 1.25 | 5.3 | 13 | 14.38 |
| M10 | 1.5 | 6.4 | 17 | 18.90 |
| M12 | 1.75 | 7.5 | 19 | 21.10 |
| M16 | 2.0 | 10.0 | 24 | 26.75 |
| M20 | 2.5 | 12.5 | 30 | 33.53 |
| M24 | 3.0 | 15.0 | 36 | 39.98 |
| M30 | 3.5 | 18.7 | 46 | 50.85 |
| M36 | 4.0 | 22.5 | 55 | 60.79 |
Chemical Composition (Inconel Grades)
| Grade | Ni (Nickel) | Cr (Chromium) | Fe (Iron) | Mo (Molybdenum) | Nb (Niobium) | Co (Cobalt) | Other Elements |
|---|---|---|---|---|---|---|---|
| Inconel 600 | 72.0% Min | 14.0 - 17.0% | 6.0 - 10.0% | - | - | - | Mn 1.0%, C 0.15% |
| Inconel 601 | 58.0 - 63.0% | 21.0 - 25.0% | Balance | - | - | - | Al 1.0 - 1.7% |
| Inconel 625 | 58.0% Min | 20.0 - 23.0% | 5.0% Max | 8.0 - 10.0% | 3.15 - 4.15% | 1.0% Max | Ti 0.4%, Al 0.4% |
| Inconel 718 | 50.0 - 55.0% | 17.0 - 21.0% | Balance | 2.8 - 3.3% | 4.75 - 5.5% | 1.0% Max | Ti 0.65 - 1.15% |
| Inconel X-750 | 70.0% Min | 14.0 - 17.0% | 5.0 - 9.0% | - | 0.7 - 1.2% | 1.0% Max | Ti 2.25 - 2.75%, Al 0.4 - 1.0% |
| Inconel 800 | 30.0 - 35.0% | 19.0 - 23.0% | 39.5% Min | - | - | - | Al 0.15 - 0.60%, Ti 0.15 - 0.60% |
| Inconel 825 | 38.0 - 46.0% | 19.5 - 23.5% | 22.0% Min | 2.5 - 3.5% | - | - | Cu 1.5 - 3.0%, Ti 0.6 - 1.2% |
Mechanical Properties (Inconel Grades)
| Grade | Tensile Strength (MPa / N/mm²) Min |
Yield Strength (MPa / N/mm²) Min |
Elongation (%) Min |
Hardness (HRC / HB) |
|---|---|---|---|---|
| Inconel 600 | 550 | 240 | 30% | 65 - 85 HRB |
| Inconel 601 | 550 | 205 | 30% | 60 - 80 HRB |
| Inconel 625 | 827 | 414 | 30% | 145 - 220 HB |
| Inconel 718 | 1275 | 1035 | 12% | 36 - 44 HRC |
| Inconel X-750 | 1100 | 700 | 15% | 30 - 40 HRC |
| Inconel 800 | 520 | 205 | 30% | 75 HRB (Max) |
| Inconel 825 | 586 | 241 | 30% | 135 - 165 HB |
