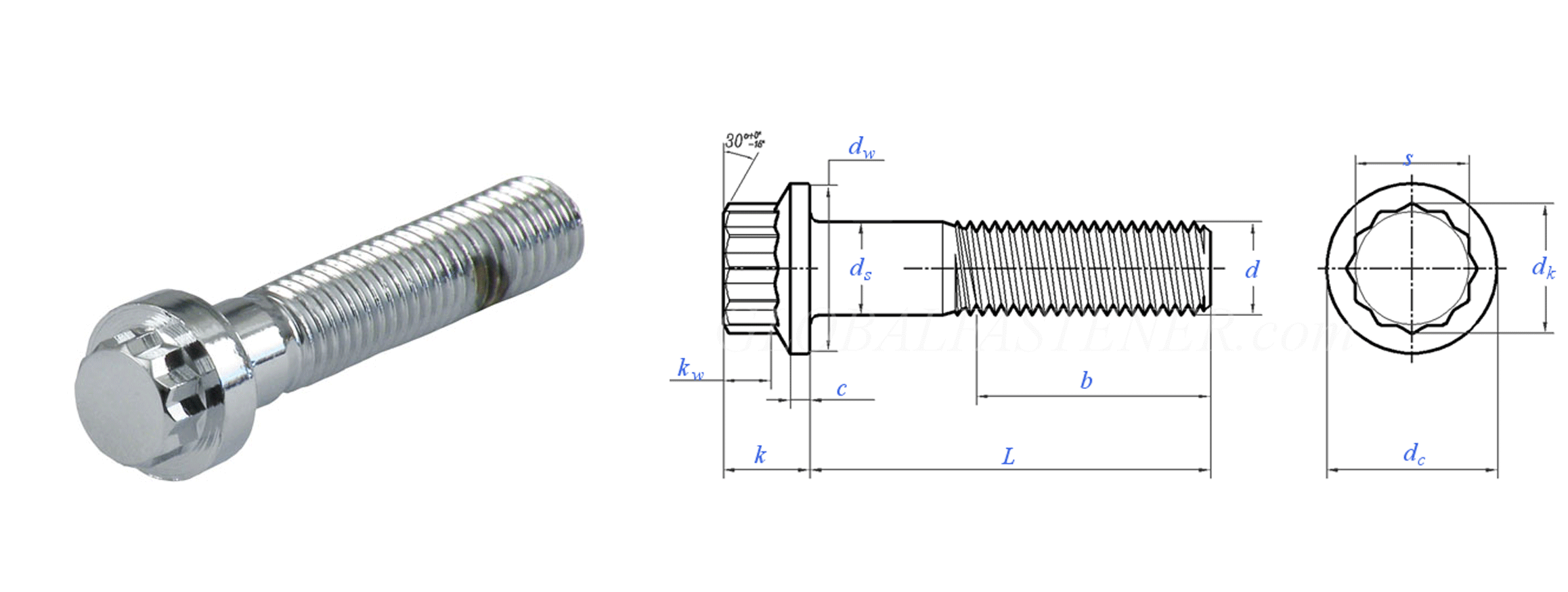

12 Point Bolts, also known as Ferry Cap Screws or Flange 12-Point Screws, are high-performance fasteners distinguished by their dodecagonal (12-sided) head design. This unique geometry allows for significantly higher torque application compared to standard hex bolts while possessing a head diameter comparable to a socket head cap screw, making them ideal for high-stress applications in confined spaces. Frequently used in aerospace, heavy engine assembly, and petrochemical flanges, these bolts eliminate the need for separate washers due to their integrated flange face. Manufactured to standards such as IFI 115, SAE J1199, and ASTM A193, they offer superior clamping force. At Inconel Fasteners, we manufacture 12 Point Bolts in ultra-high-strength superalloys like Inconel 718, 625, and A286, designed to withstand extreme vibration, pressure, and thermal cycling.

Detailed Specifications

Size
M5 to M100 Metric 1/4” to 4″ Imperial
Length
10mm to 1000mm Custom Lengths Available
Type of Threads
Metric Coarse Metric Fine UNC UNF 8UN / 12UN
Standards & Configuration
IFI 115 (Flange 12-Point) SAE J1199 MS21250 (Aerospace) ASME B18.2.5M
Type of Manufacturing
Hot Forging Cold Forging (Small Sizes) Machined from Bar
Raw Material Origin
Indian Origin European Origin Japanese Origin US Origin Korean Origin
Finish Part Origin
Made in India Custom Origin per Request
Surface Coating
Plain / Oil Black Silver Plated (Common for 12pt) Cadmium Zinc Nickel PTFE / Teflon Molykote
Marking
Manufacturer Logo Grade ID Heat Number (Traceability)
Heat Treatment Details
Solution Annealing Age Hardening Precipitation Hardening
Delivery Terms
Ex-Works (EXW) FOB CIF CFR DDP
Packing Type
Carton Boxes Wooden Pallets Wooden Crates Export Worthy Packing
Payment Methods
L/C (Letter of Credit) T/T (Wire Transfer) Western Union
Certifications
ISO 9001:2015 PED 2014/68/EU MTC EN 10204 3.1
Additional Certifications
NABL Approved Lab Reports Third Party Inspection (TPI) RoHS Compliance
Mandatory & Additional Requirements
Positive Material Identification (PMI) NACE MR0175 / ISO 15156 Tensile Testing Intergranular Corrosion Test (IGC)

Available Inconel Grades & Standards

Dimensions Chart (12 Point Flange Screw)

Nominal Size (d) Pitch (P) Flange Diameter (dc)
(Max)		 Head Height (k)
(Max)		 Wrenching Size (s)
(Double Hex)
M6 1.0 14.2 mm 6.6 mm 8.0 mm
M8 1.25 18.0 mm 8.1 mm 10.0 mm
M10 1.5 22.3 mm 9.2 mm 12.0 mm
M12 1.75 26.6 mm 11.5 mm 14.0 mm
M16 2.0 35.0 mm 14.4 mm 18.0 mm
M20 2.5 43.0 mm 17.1 mm 22.0 mm
M24 3.0 52.5 mm 20.5 mm 27.0 mm

Chemical Composition (Inconel Grades)

Grade Ni (Nickel) Cr (Chromium) Fe (Iron) Mo (Molybdenum) Nb (Niobium) Ti (Titanium) Other Elements
Inconel 718 50.0 - 55.0% 17.0 - 21.0% Balance 2.8 - 3.3% 4.75 - 5.5% 0.65 - 1.15% Al 0.2 - 0.8%
Inconel A286 24.0 - 27.0% 13.5 - 16.0% Balance 1.0 - 1.5% - 1.9 - 2.35% V 0.1 - 0.5%, Al 0.35%
Inconel 625 58.0% Min 20.0 - 23.0% 5.0% Max 8.0 - 10.0% 3.15 - 4.15% 0.4% Max Al 0.4% Max
Inconel X-750 70.0% Min 14.0 - 17.0% 5.0 - 9.0% - 0.7 - 1.2% 2.25 - 2.75% Al 0.4 - 1.0%
Inconel 600 72.0% Min 14.0 - 17.0% 6.0 - 10.0% - - - Mn 1.0%, C 0.15%
Inconel 800 30.0 - 35.0% 19.0 - 23.0% 39.5% Min - - 0.15 - 0.60% Al 0.15 - 0.60%
Inconel 825 38.0 - 46.0% 19.5 - 23.5% 22.0% Min 2.5 - 3.5% - 0.6 - 1.2% Cu 1.5 - 3.0%

Mechanical Properties (Inconel 12 Point Bolts)

Grade Tensile Strength
(MPa / N/mm²) Min		 Yield Strength
(MPa / N/mm²) Min		 Elongation
(%) Min		 Hardness
(HRC / HB)
Inconel 718 1275 1035 12% 36 - 44 HRC
Inconel A286 900 - 1100 600 - 800 15% 24 - 35 HRC
Inconel X-750 1100 700 15% 30 - 40 HRC
Inconel 625 827 414 30% 145 - 220 HB
Inconel 600 550 240 30% 65 - 85 HRB
Inconel 800 520 205 30% 75 HRB (Max)
Inconel 825 586 241 30% 135 - 165 HB
