Button Head Screw

  • Home
  • Button Head Screw
...

Button Head Screws are designed with a low-profile, rounded dome head that offers a sleek, aesthetic finish while preventing snagging in tight assemblies. Unlike standard cap screws, the wider bearing surface of the button head provides excellent clamping force without requiring a washer, making them ideal for sheet metal fastening, automotive panels, and protective housings. Manufactured to precision standards such as ISO 7380 and ASME B18.3, these screws feature a hexagonal socket drive for high-torque installation. At Inconel Fasteners, we supply superior Button Head Screws in high-performance alloys like Inconel 600, 625, 718, and Monel 400, delivering unmatched resistance to oxidation and corrosion in critical industrial applications.

Detailed Specifications

Size
M3 to M24 Metric #4 to 1″ Imperial
Length
6mm to 300mm Custom Lengths Available
Type of Threads
Metric Coarse Metric Fine UNC UNF BSW
Standards & Configuration
ISO 7380 (Metric) ASME B18.3 (Imperial) Class 6g / 2A
Type of Manufacturing
Cold Forging Machined (CNC)
Raw Material Origin
Indian Origin European Origin Japanese Origin US Origin Korean Origin
Finish Part Origin
Made in India Custom Origin per Request
Surface Coating
Plain / Oil Black Zinc Plated Black Oxide Cadmium Nickel PTFE / Teflon
Marking
Manufacturer Logo Grade ID Heat Number (Traceability)
Heat Treatment Details
Solution Annealing Age Hardening Stress Relieving
Delivery Terms
Ex-Works (EXW) FOB CIF CFR DDP
Packing Type
Carton Boxes Wooden Pallets Wooden Crates Export Worthy Packing
Payment Methods
L/C (Letter of Credit) T/T (Wire Transfer) Western Union
Certifications
ISO 9001:2015 PED 2014/68/EU MTC EN 10204 3.1
Additional Certifications
NABL Approved Lab Reports Third Party Inspection (TPI) RoHS Compliance
Mandatory & Additional Requirements
Positive Material Identification (PMI) NACE MR0175 / ISO 15156 Ultrasonic Test (UT) Intergranular Corrosion Test (IGC)

Available Inconel Grades & Standards

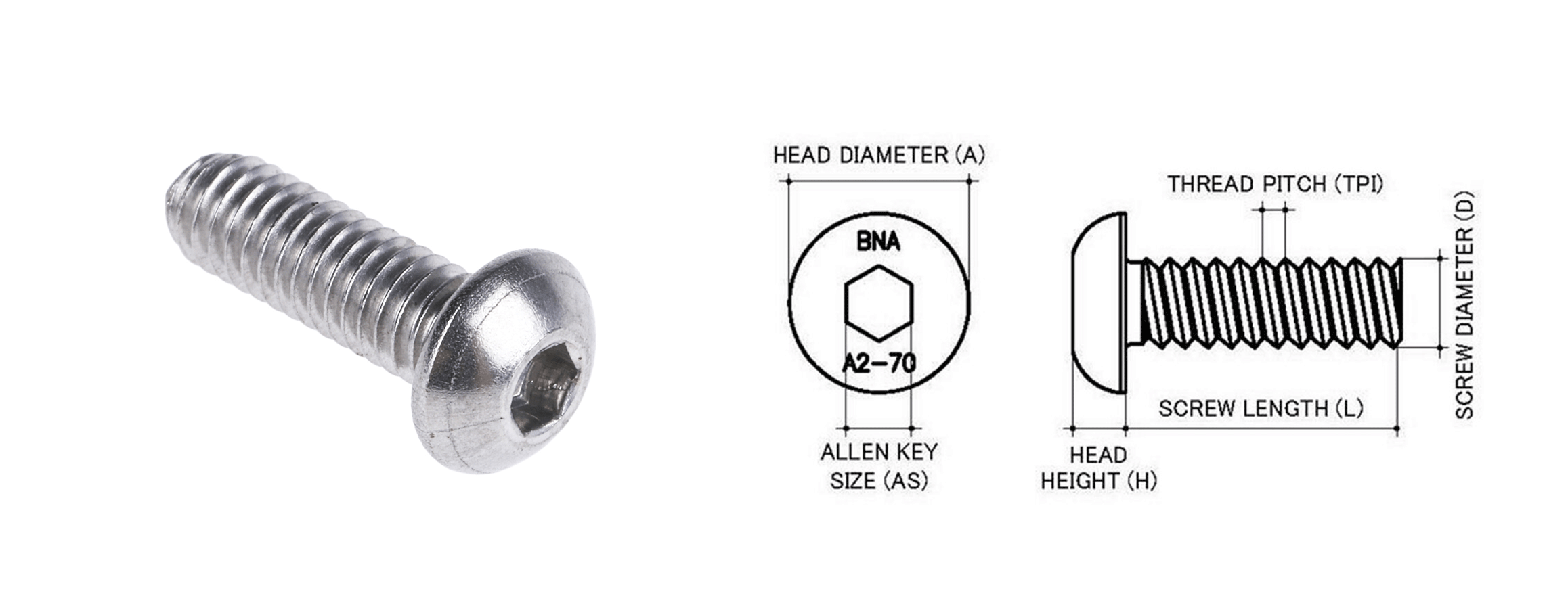

Dimensions Chart (ISO 7380 / ASME B18.3)

Nominal Size (d) Pitch (P) Head Diameter (dk)
(Max)		 Head Height (k)
(Max)		 Hex Key Size (s)
M3 0.5 5.7 mm 1.65 mm 2.0 mm
M4 0.7 7.6 mm 2.20 mm 2.5 mm
M5 0.8 9.5 mm 2.75 mm 3.0 mm
M6 1.0 10.5 mm 3.30 mm 4.0 mm
M8 1.25 14.0 mm 4.40 mm 5.0 mm
M10 1.5 17.5 mm 5.50 mm 6.0 mm
M12 1.75 21.0 mm 6.60 mm 8.0 mm
M16 2.0 28.0 mm 8.80 mm 10.0 mm

Chemical Composition (Inconel Grades)

Grade Ni (Nickel) Cr (Chromium) Fe (Iron) Mo (Molybdenum) Nb (Niobium) Co (Cobalt) Other Elements
Inconel 600 72.0% Min 14.0 - 17.0% 6.0 - 10.0% - - - Mn 1.0%, C 0.15%
Inconel 601 58.0 - 63.0% 21.0 - 25.0% Balance - - - Al 1.0 - 1.7%
Inconel 625 58.0% Min 20.0 - 23.0% 5.0% Max 8.0 - 10.0% 3.15 - 4.15% 1.0% Max Ti 0.4%, Al 0.4%
Inconel 718 50.0 - 55.0% 17.0 - 21.0% Balance 2.8 - 3.3% 4.75 - 5.5% 1.0% Max Ti 0.65 - 1.15%
Inconel X-750 70.0% Min 14.0 - 17.0% 5.0 - 9.0% - 0.7 - 1.2% 1.0% Max Ti 2.25 - 2.75%, Al 0.4 - 1.0%
Inconel 800 30.0 - 35.0% 19.0 - 23.0% 39.5% Min - - - Al 0.15 - 0.60%, Ti 0.15 - 0.60%
Inconel 825 38.0 - 46.0% 19.5 - 23.5% 22.0% Min 2.5 - 3.5% - - Cu 1.5 - 3.0%, Ti 0.6 - 1.2%

Mechanical Properties (Inconel Button Head Screws)

Grade Tensile Strength
(MPa / N/mm²) Min		 Yield Strength
(MPa / N/mm²) Min		 Elongation
(%) Min		 Hardness
(HRC / HB)
Inconel 718 1275 1035 12% 36 - 44 HRC
Inconel 625 827 414 30% 145 - 220 HB
Inconel X-750 1100 700 15% 30 - 40 HRC
Inconel 600 550 240 30% 65 - 85 HRB
Inconel 601 550 205 30% 60 - 80 HRB
Inconel 800 520 205 30% 75 HRB (Max)
Inconel 825 586 241 30% 135 - 165 HB
