Countersunk Head Screws are precision fasteners featuring a flat head with a conical bearing surface, designed to sit flush with or below the surface of the workpiece for a smooth, streamlined finish. Ideal for aerodynamic applications, moving machinery, and architectural assemblies where protrusion is undesirable, these screws offer both aesthetic appeal and functional safety. Manufactured to rigorous standards such as DIN 7991, ISO 10642, and ASME B18.3, they ensure a secure, high-torque fit. At Inconel Fasteners, we specialize in supplying Countersunk Head Screws in premium high-temperature and corrosion-resistant alloys, including Inconel 600, 625, 718, and Hastelloy, guaranteeing exceptional performance in the most demanding marine and aerospace environments.

Detailed Specifications

Size
M2 to M64 Metric #4 to 4″ Imperial
Length
6mm to 1000mm Custom Lengths Available
Type of Threads
Metric Coarse Metric Fine UNC UNF BSW
Standards & Configuration
DIN 7991 (Socket) ISO 10642 ASME B18.3 (Flat Head) DIN 965 (Phillips)
Drive Type
Hex Socket (Allen) Torx (6-Lobe) Phillips Slotted
Type of Manufacturing
Cold Forging Hot Forging CNC Machining
Raw Material Origin
Indian Origin European Origin Japanese Origin US Origin Korean Origin
Finish Part Origin
Made in India Custom Origin per Request
Surface Coating
Plain / Oil Black Zinc Plated Black Oxide Cadmium Nickel PTFE / Teflon
Marking
Manufacturer Logo Grade ID Heat Number (Traceability)
Heat Treatment Details
Solution Annealing Age Hardening Stress Relieving
Delivery Terms
Ex-Works (EXW) FOB CIF CFR DDP
Packing Type
Carton Boxes Wooden Pallets Wooden Crates Export Worthy Packing
Payment Methods
L/C (Letter of Credit) T/T (Wire Transfer) Western Union
Certifications
ISO 9001:2015 PED 2014/68/EU MTC EN 10204 3.1
Additional Certifications
NABL Approved Lab Reports Third Party Inspection (TPI) RoHS Compliance
Mandatory & Additional Requirements
Positive Material Identification (PMI) NACE MR0175 / ISO 15156 Ultrasonic Test (UT) Intergranular Corrosion Test (IGC)

Available Inconel Grades & Standards

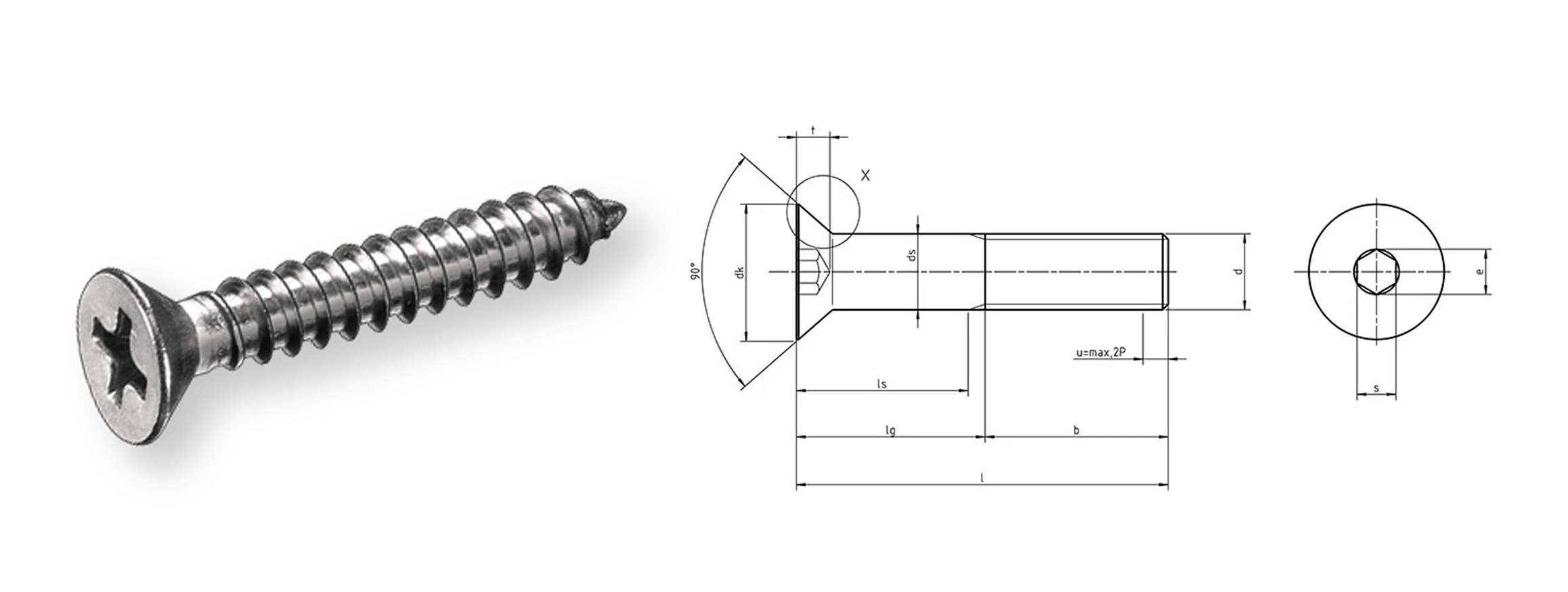

Dimensions Chart (DIN 7991 / ISO 10642)

Nominal Size (d) Pitch (P) Head Diameter (dk)
(Max)		 Head Height (k)
(Max)		 Key Size (s)
M3 0.5 6.0 mm 1.7 mm 2.0 mm
M4 0.7 8.0 mm 2.3 mm 2.5 mm
M5 0.8 10.0 mm 2.8 mm 3.0 mm
M6 1.0 12.0 mm 3.3 mm 4.0 mm
M8 1.25 16.0 mm 4.4 mm 5.0 mm
M10 1.5 20.0 mm 5.5 mm 6.0 mm
M12 1.75 24.0 mm 6.5 mm 8.0 mm
M16 2.0 30.0 mm 7.5 mm 10.0 mm
M20 2.5 36.0 mm 8.5 mm 12.0 mm
M24 3.0 39.0 mm 14.0 mm 14.0 mm

Chemical Composition (Inconel Grades)

Grade Ni (Nickel) Cr (Chromium) Fe (Iron) Mo (Molybdenum) Nb (Niobium) Co (Cobalt) Other Elements
Inconel 600 72.0% Min 14.0 - 17.0% 6.0 - 10.0% - - - Mn 1.0%, C 0.15%
Inconel 601 58.0 - 63.0% 21.0 - 25.0% Balance - - - Al 1.0 - 1.7%
Inconel 625 58.0% Min 20.0 - 23.0% 5.0% Max 8.0 - 10.0% 3.15 - 4.15% 1.0% Max Ti 0.4%, Al 0.4%
Inconel 718 50.0 - 55.0% 17.0 - 21.0% Balance 2.8 - 3.3% 4.75 - 5.5% 1.0% Max Ti 0.65 - 1.15%
Inconel X-750 70.0% Min 14.0 - 17.0% 5.0 - 9.0% - 0.7 - 1.2% 1.0% Max Ti 2.25 - 2.75%, Al 0.4 - 1.0%
Inconel 800 30.0 - 35.0% 19.0 - 23.0% 39.5% Min - - - Al 0.15 - 0.60%, Ti 0.15 - 0.60%
Inconel 825 38.0 - 46.0% 19.5 - 23.5% 22.0% Min 2.5 - 3.5% - - Cu 1.5 - 3.0%, Ti 0.6 - 1.2%

Mechanical Properties (Inconel Countersunk Screws)

Grade Tensile Strength
(MPa / N/mm²) Min		 Yield Strength
(MPa / N/mm²) Min		 Elongation
(%) Min		 Hardness
(HRC / HB)
Inconel 625 827 414 30% 145 - 220 HB
Inconel 718 1275 1035 12% 36 - 44 HRC
Inconel X-750 1100 700 15% 30 - 40 HRC
Inconel 600 550 240 30% 65 - 85 HRB
Inconel 601 550 205 30% 60 - 80 HRB
Inconel 800 520 205 30% 75 HRB (Max)
Inconel 825 586 241 30% 135 - 165 HB
